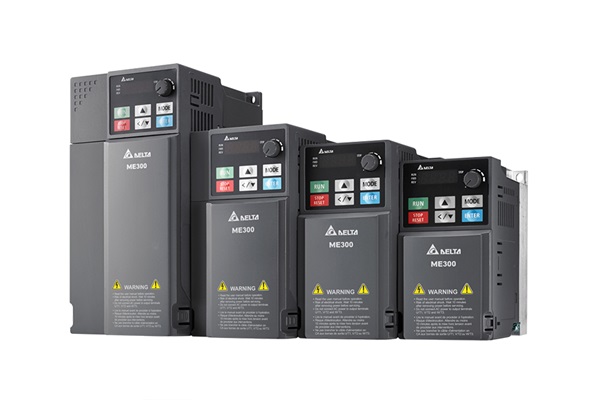

Compact Drives - ME300 Series

Inverter Delta‘s ME300 Series is a new generation compact vector control drive that inherits Delta’s superior drive technology, but with a 60% reduction in size. It supports both IM and PM motors, providing higher efficiency and flexibility. Various built-in essential functions are standard to reduce the need for additional expenses and to shorten installation time. The STO function is an option that prevents damage.

With its user-friendly operation, ultra-compact size, quick installation, and flexible, durable design, the ME300 is your key to increased market competitiveness and greater success.

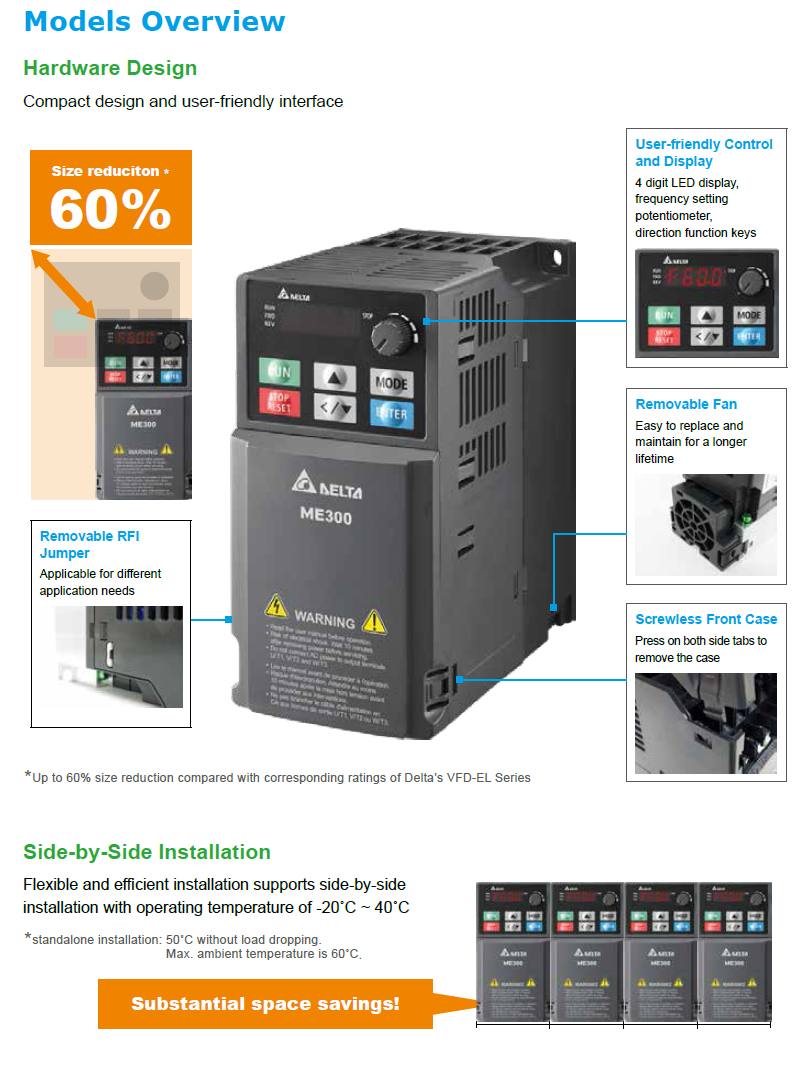

Inverter Delta ME300 Hardware Design

Inverter Delta ME300 Specification

• Dual rating design:
  • 120% for 60 seconds for Normal Duty (ND)
  • 150% for 60 seconds for Heavy Duty (HD)
• Supports IM / PM motors and VF / SVC open loop control
• Up to 200% rated starting torque at 0.5 Hz
• 2 sets of motor parameters for multi-motor control
• Supports high speed pulse and PWM signal input for simple close loop
• Built-in single / multi-pump function
• Built-in brake choppers for the entire series
• Optional built-in EMC filter for 1-phase 230V (C2), 3-phase 460V (C3) models
• Optional built-in Safe Torque Off (SIL2/PLd)
• 100% PCB coating for circuit (IEC 60721-3-3 class 3C2) and thermal design for harsh environment

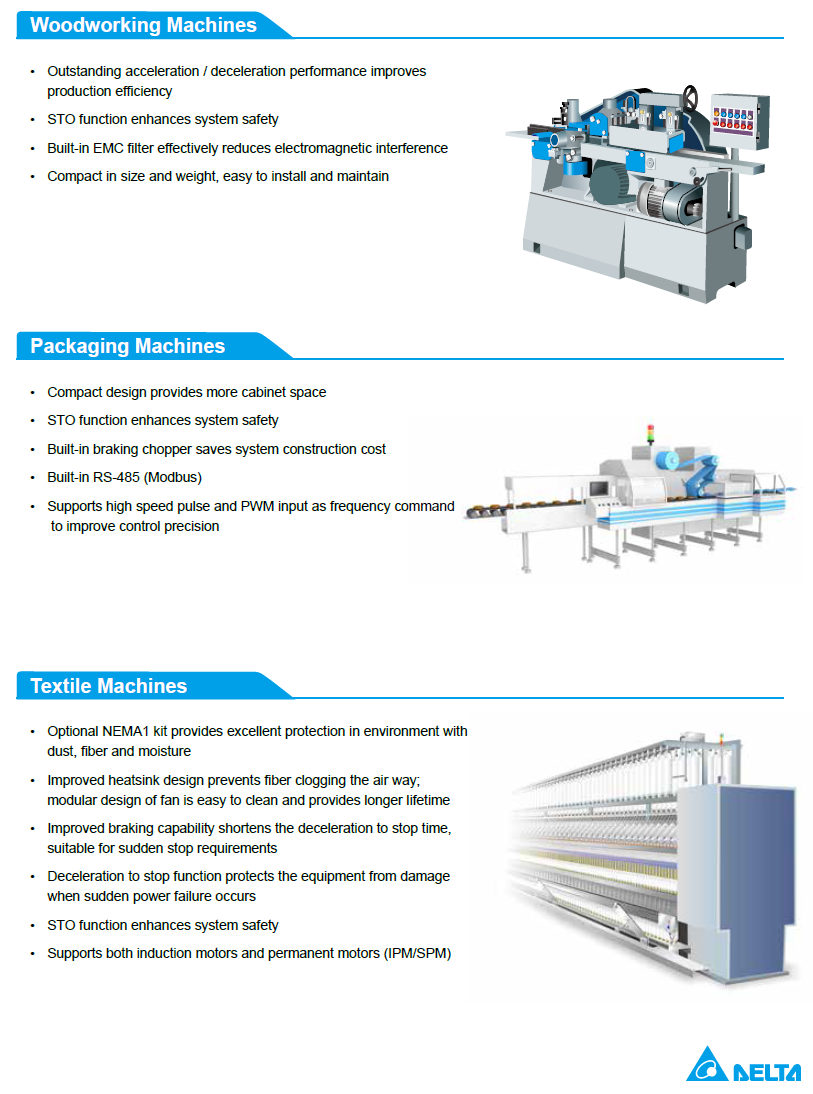

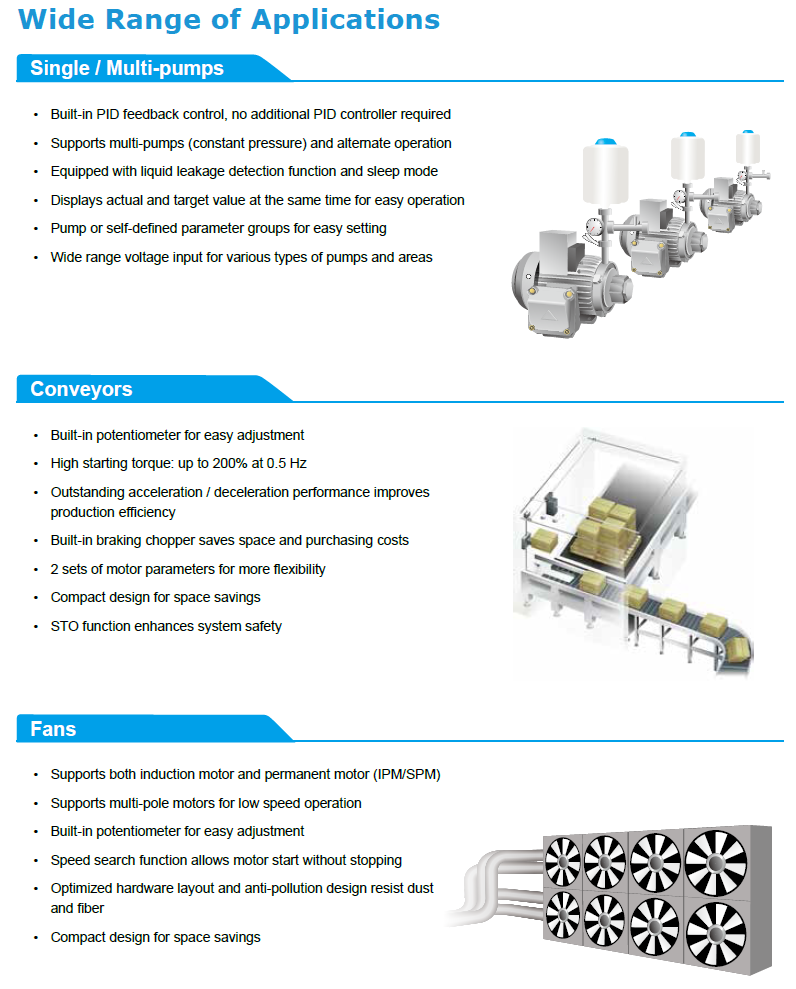

Inverter Delta ME300 Application


Inverter Delta ME300 Model List
VFD0A8ME11ANNAA VFD0A8ME11ANSAA VFD0A8ME21ANNAA VFD0A8ME21ANSAA VFD0A8ME23ANNAA VFD0A8ME23ANSAA VFD1A6ME11ANNAA VFD1A6ME11ANSAA VFD1A6ME21ANNAA VFD1A6ME21ANSAA VFD1A6ME23ANNAA VFD1A6ME23ANSAA VFD2A8ME23ANNAA VFD2A8ME23ANSAA VFD2A5ME11ANNAA VFD2A5ME11ANSAA VFD2A8ME21ANNAA VFD2A8ME21ANSAA VFD1A5ME43ANNAA VFD1A5ME43ANSAA VFD4A8ME23ANNAA VFD4A8ME23ANSAA VFD2A7ME43ANNAA VFD2A7ME43ANSAA
VFD7A5ME23ANNAA VFD7A5ME23ANSAA VFD4A2ME43ANNAA VFD4A2ME43ANSAA VFD4A8ME21ANNAA VFD4A8ME21ANSAA VFD0A8ME21AFNAA VFD0A8ME21AFSAA VFD1A6ME21AFNAA VFD1A6ME21AFSAA VFD2A8ME21AFNAA VFD2A8ME21AFSAA VFD4A8ME21AFNAA VFD4A8ME21AFSAA VFD1A5ME43AFNAA VFD1A5ME43AFSAA VFD2A7ME43AFNAA VFD2A7ME43AFSAA VFD4A2ME43AFNAA VFD4A2ME43AFSAA
VFD4A8ME11ANNAA VFD4A8ME11ANSAA VFD7A5ME21ANNAA VFD7A5ME21ANSAA VFD11AME21ANNAA VFD11AME21ANSAA VFD11AME23ANNAA VFD11AME23ANSAA VFD17AME23ANNAA VFD17AME23ANSAA VFD5A5ME43ANNAA VFD5A5ME43ANSAA VFD7A3ME43ANNAA VFD7A3ME43ANSAA VFD9A0ME43ANNAA VFD9A0ME43ANSAA VFD7A5ME21AFNAA VFD7A5ME21AFSAA VFD11AME21AFNAA VFD11AME21AFSAA VFD5A5ME43AFNAA VFD5A5ME43AFSAA VFD7A3ME43AFNAA VFD7A3ME43AFSAA VFD9A0ME43AFNAA VFD9A0ME43AFSAA VFD25AME23ANNAA VFD25AME23ANSAA VFD13AME43ANNAA VFD13AME43ANSAA VFD17AME43ANNAA VFD17AME43ANSAA VFD13AME43AFNAA VFD13AME43AFSAA VFD17AME43AFNAA VFD17AME43AFSAA
