Compact Drives - MS300 Series

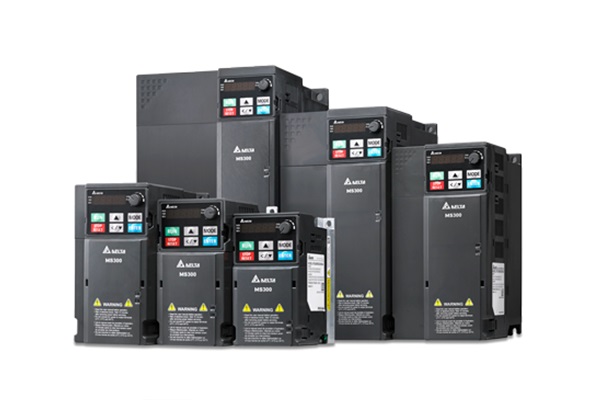

MS300 Series
Inverter Delta's MS300 series is a standard compact vector control drive that inherits Delta's superior drive technology. It supports both IM and PM motor control for application flexibility and provides STO safety mechanism. Also built-in various essential functions, including PLC capacity for simple programming needs, a communication slot for various communication cards, and a USB port to make data uploads and downloads fast and easy. Saving space, reducing setup and wiring time, while providing high efficiency and stability system —all included in the MS300 series with drive size reduced up to 40%.

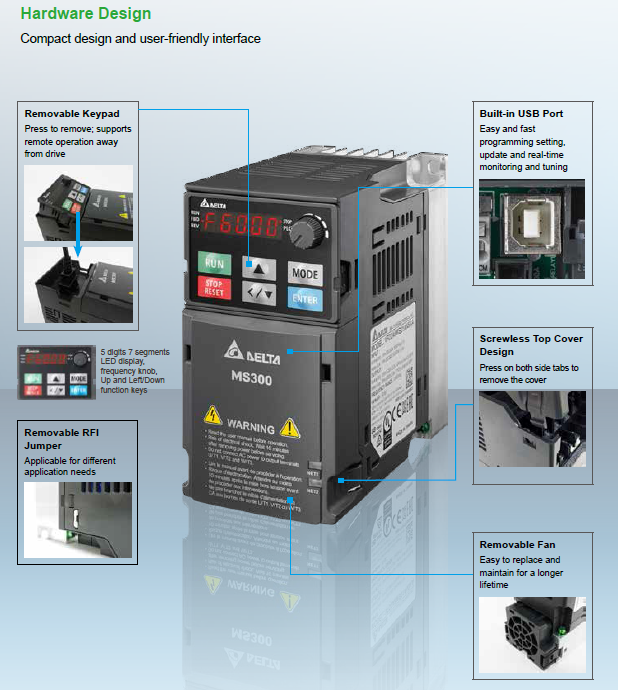

Inverter Delta MS300 Hardware Design
Inverter Delta MS300 Specification
- Supports Open loop control of IM and PM motors
- Output frequency:High speed models: 0 to 1500 Hz (V/f Control)
- Standard models: 0 to 599 Hz
- Dual rating design:150% for 60 seconds for Heavy Duty (HD)
- 120% for 60 seconds for Normal Duty (ND)
- Built-in PLC program with 2K steps capacity
- Built-in brake choppers for the entire series
- Removable 5-digit LED keypad for remote operation
- Safety standard compliance: Safe Torque Off (SIL2/PLd)
- Multi-motor Control，built-in four IM motor control parameters
- Optional built-in Class A (C2) standard EMC filter for 1-phase 230V, 3-phase 460V models
- One high speed pulse input terminals MI7 built-in with maximum speed up to 33kHz
- One high speed pulse output terminals DFM built-in with maximum speed up to 33kHz
- New PCB coating for circuit (IEC 60721-3-3 class 3C2) and thermal design suitable for harsh environment applications
- Built-in one slot do communication card installation : CANopen, PROFIBUS DP, DeviceNet, MODBUS TCP, EtherNet/IP

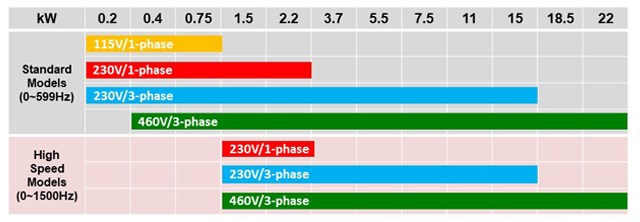

Inverter Delta MS300 Model List
INVERTER VFD2A8MS21ANSAA 0.4kW 1/2Hp 1Phase 230V
INVERTER VFD4A8MS21ANSAA 0.75kW 1Hp 1Phase 230V
INVERTER VFD7A5MS21ANSAA 1.5kW 2Hp 1Phase 230V
INVERTER VFD11AMS21ANSAA 2.2kW 3Hp 1Phase 230V
INVERTER VFD2A8MS23ANSAA 0.4kW 1/2Hp 3Phase 230V
INVERTER VFD4A8MS23ANSAA 0.75kW 1Hp 3Phase 230V
INVERTER VFD7A5MS23ANSAA 1.5kW 2Hp 3Phase 230V
INVERTER VFD11AMS23ANSAA 2.2kW 3Hp 3Phase 230V
INVERTER VFD17AMS23ANSAA 3.7kW 5Hp 3Phase 230V
INVERTER VFD25AMS23ANSAA 5.5kW 7.5Hp 3Phase 230V
INVERTER VFD33AMS23ANSAA 7.5kW 10Hp 3Phase 230V
INVERTER VFD49AMS23ANSAA 11kW 15Hp 3Phase 230V
INVERTER VFD65AMS23ANSAA 15kW 20Hp 3Phase 230V
INVERTER VFD1A5MS43ANSAA 0.4kW 1/2Hp 3Phase 380V
INVERTER VFD2A7MS43ANSAA 0.75kW 1Hp 3Phase 380V
INVERTER VFD4A2MS43ANSAA 1.5kW 2Hp 3Phase 380V
INVERTER VFD5A5MS43ANSAA 2.2kW 3Hp 3Phase 380V
INVERTER VFD9A0MS43ANSAA 3.7kW 5Hp 3Phase 380V
INVERTER VFD13AMS43ANSAA 5.5kW 7.5Hp 3Phase 380V
INVERTER VFD17AMS43ANSAA 7.5kW 10Hp 3Phase 380V
INVERTER VFD25AMS43ANSAA 11kW 15Hp 3Phase 380V
INVERTER VFD32AMS43ANSAA 15kW 20Hp 3Phase 380V
INVERTER VFD38AMS43ANSAA 18.5kW 25Hp 3Phase 380V
INVERTER VFD45AMS43ANSAA 22kW 30Hp 3Phase 380V

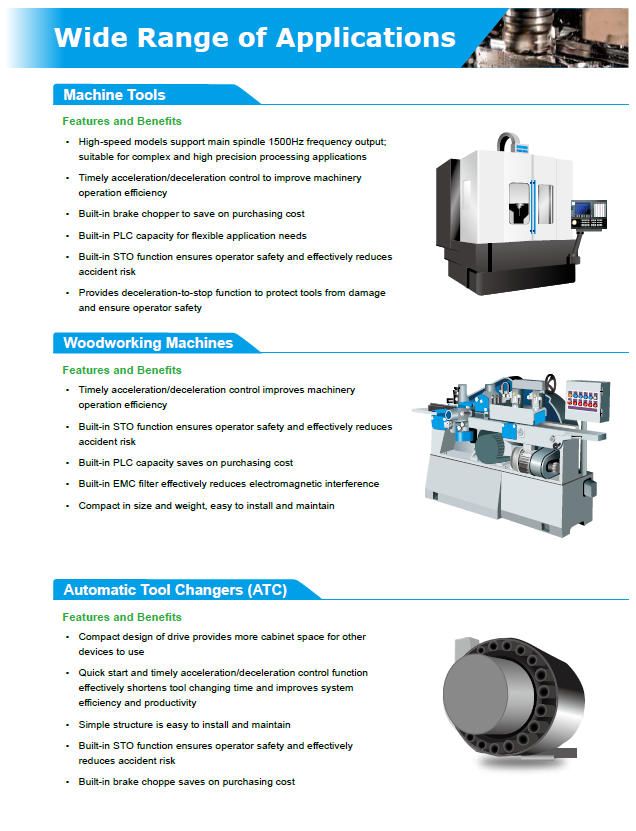

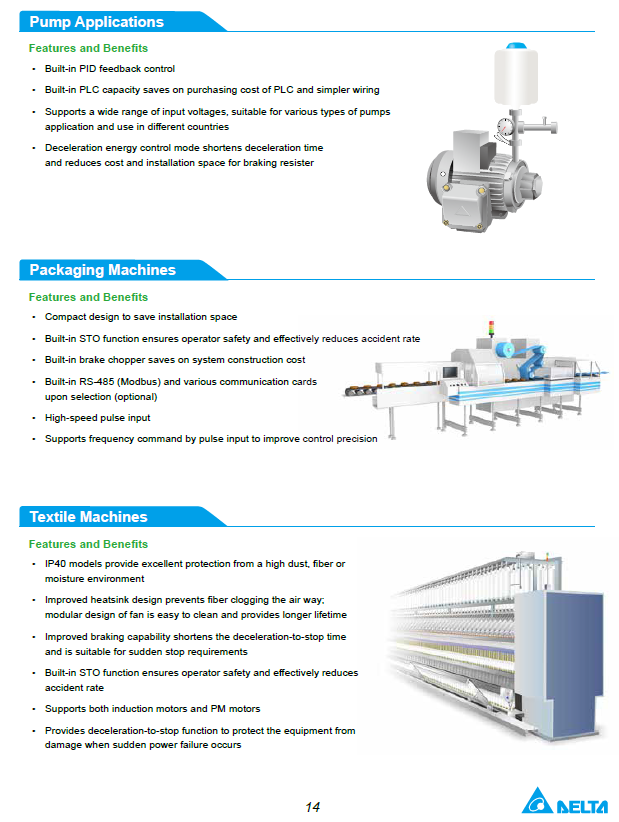

Inverter Delta MS300 Application
