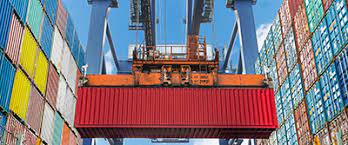

เพื่อตอบสนองอุตสาหกรรมที่ต้องการใช้เครนเพื่อขนส่งตู้คอนเทนเนอร์ที่ท่าเรือทั่วโลก การใช้อินเวอร์เตอร์(Inverter) จะทำให้สามารถโหลดและขนถ่ายสินค้าได้อย่างราบรื่นนั้น จะต้องทำด้วยความเร็วต่ำและแรงบิดสูง

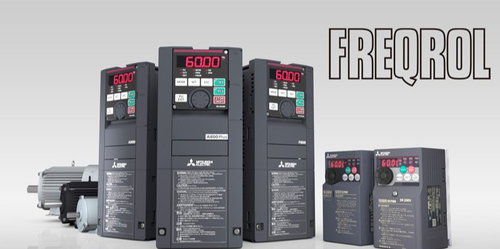

FR-A800 Series Variable Frequency Drives
The FR-A800 Series variable frequency drive is Mitsubishi Electric’s most advanced and capable VFD solution. Whether your needs call for a simple component style solution or large capacity motor control centers, the FR-A800 is designed to be flexible and offers a wealth of embedded functionality to simplify your application and implementation. Ideal for many simple tasks like fan and pump control, the FR-A800 also excels in performing more complex and demanding applications like multi-axis coordinated motion, load sharing conveyors, and gantry hoisting systems. Similar to other inverter products manufactured by Mitsubishi Electric, the 800 Series continues the tradition of maintenance free operation and long lasting service life. Mitsubishi Electric VFDs are world renowned for their high level of performance, efficiency and outstanding reliability – start using solutions that give you the competitive edge.
Intelligent Energy Optimization
As a result of the enhanced optimum excitation control in Mitsubishi Electric variable frequency drives, over current is no longer generated during steep acceleration/deceleration even without limiting the amount of voltage compensation during these operations which ultimately provides improved energy savings.
Advanced Drive Configurations
Drives For Every Industry
- FR-A800 Standard Series – This family of products is ideal for all applications requiring an all in one component style solution. Machine builders and facilities across the world have depended on this familiar architecture as their motor control solution, whether open air plenum style or enclosed in a panel, there are flexible configurations to meet your requirements.
- FR-A802 Series – This family of products is ideal for any application requiring a large capacity drive systems. The independent converter and inverter component architecture enables you to design a wide range of system solutions to address everything from driving large capacity motors, regenerative braking, and also low harmonics solutions.
- FR-A806 Series – This family of products is ideal for motor control applications in harsh environments. The enclosed NEMA12(IP55) structure simplifies engineering, operation and system design. This design includes embedded hardware, such as DC Choke and EMC filters, to reduce electrical noise and provide protection from imperfections with incoming power.
